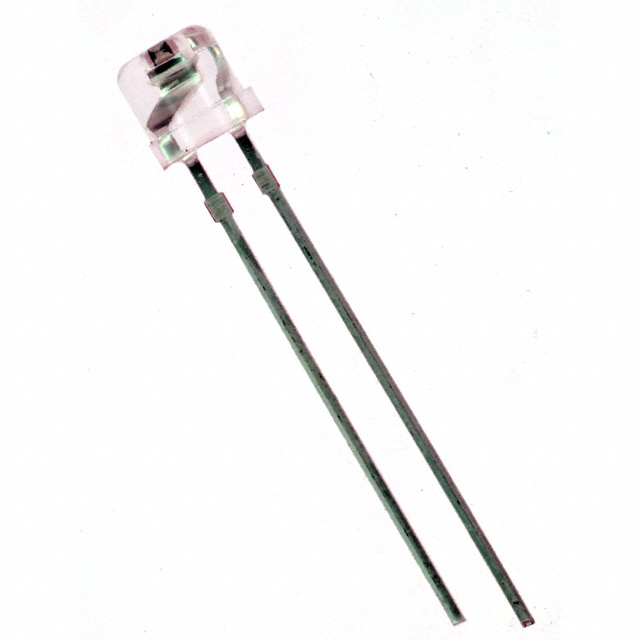

TEPT5700

• • Package type: leaded
• Package form: T-1¾
• Dimensions (in mm): Ø 5
• High photo sensitivity
• Adapted to human eye responsivity
• Angle of half sensitivity: ϕ = ± 50°
• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
• Maximum power dissipation: 100mW
• Maximum dark curent: 50nA
• Collector - Emitter Voltage VCEO Max: 6V
• Operating Temperature:  - 40 °C - + 85 °C
• Wavelength : 570 nm

APPLICATIONS
Ambient light sensor for control of display backlight dimming in LCD displays and keypad backlighting of mobile devices and in industrial on/off-lighting operation
