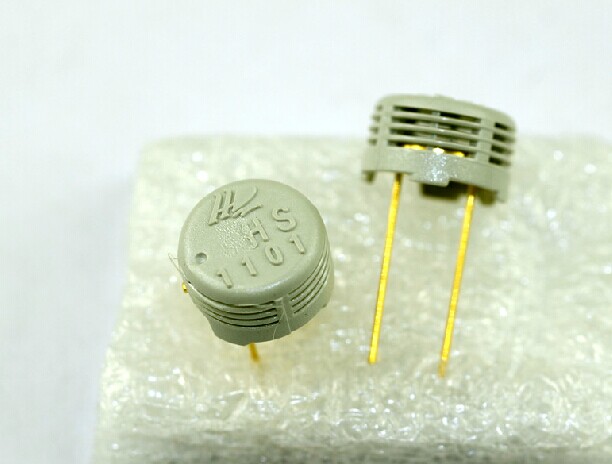

HS1101

HS1101 Relative humidity sensor  DataSheet

Kiểu Chân: DIP(2)

Nhãn hiệu: Humirel

Xuất xứ: Chính hãng
Based on a unique capacitive cell, these relative humidity sensors are designed for high volume
Humidity Operating Range: 0 to 100 %
Deviation to typical response curve (10% to 90% RH): +/-2 RH%
Power requirements: 5 to 10 VDC
Dimensions: 9.95 mm (Diameter) X 5.95mm (Height)

FEATURES

• Full interchangeability with no calibration required in standard conditions
• Instantaneous desaturation after long periods in saturation phase
• Compatible with automatized assembly processes, including wave soldering,reflow and water immersion (1)
• High reliability and long term stability
• Patented solid polymer structure
• Suitable for linear voltage or frequency output circuitry
• Fast response time
• Individual marking for compliance to stringent traceability requirements
