HR202L

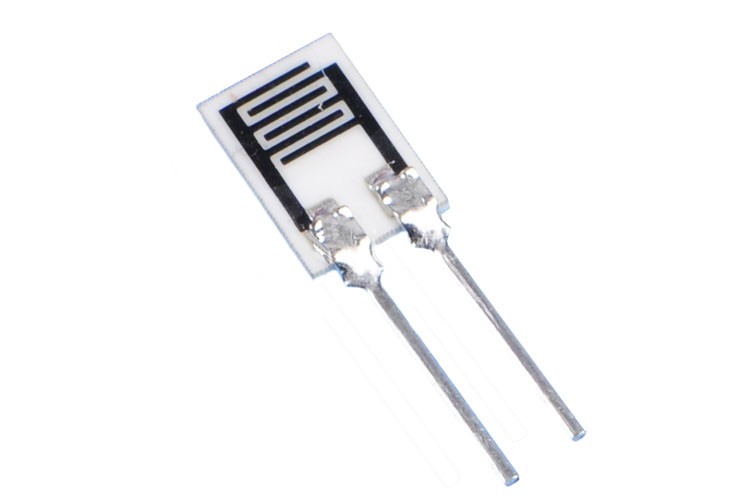

HR202L Resistive humidity sensor (Cảm biến độ ẩm Điện trở)

Kiểu Chân: DIP(2)

Nhãn hiệu: Aosong

Xuất xứ: China
Humidity(20-95%RH) Temperature(0-60 ^oC)
Power supply: 1.5V AC(Max sine)
Central value: 31kΩ(at 25Celsius, 1kHz ,1V AC, 60%RH)
Impedance range: 19.8-50.2kΩ(at 25Celsius, 1kHz ,1V AC, 60%RH)

• Features: Excellent linearity, low power consumption, wide measurement range, quick response, anti-pollution, high stability, high performance-price ratio.
• Technical Specification:



  Datasheet	humidity sensor HR202L.pdf
  Operating range	humidity(20-95%RH) temperature(0-60 Celsius)
  Power supply	1.5V AC(Max sine)
  Operating frequency	500Hz-2kHz
  Rated power	0.2mW(Max sine)
  Central value	31kΩ(at 25Celsius, 1kHz ,1V AC, 60%RH)
  Impedance range	19.8-50.2kΩ(at 25Celsius, 1kHz ,1V AC, 60%RH)
  Accuracy	+-5%RH
  Hysteresis	+-1%RH
  Long-term stability	+-1%RH/year
  Response time	<10s
